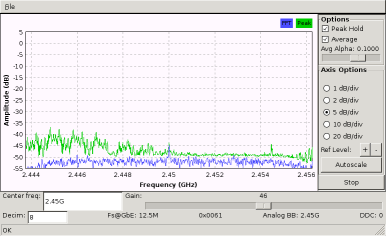

| No transmission | |
|
| |
| OQO (small laptop), 201101 series (AT86RF231, USB-A, Johanson balun, 110% antenna, larger ground) | |

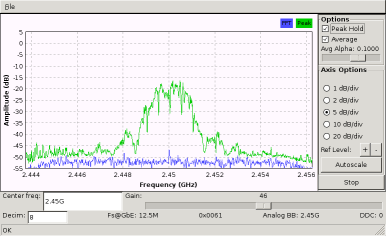

| atusb-20110104-#1, 0.5 pF rework | |
|
| |
| Ben, 20100903 series (AT86RF230, Würth balun, 100% antenna) | |

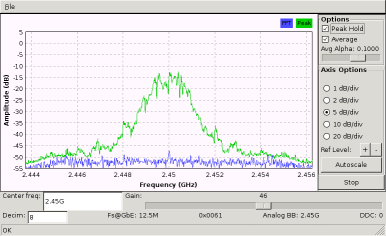

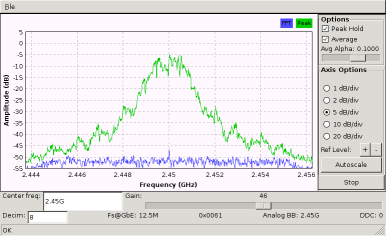

| atusd-20100903-A | atusd-20100903-B, external antenna |
|
|
|
| Ben, 20100912 series (AT86RF230, Würth balun, 100% antenna with tail) | |
| atusd-20100912-I | atusd-20100912-II |
|
|
|
| Ben, 201101 series (AT86RF231, Johanson balun, 110% antenna, many vias) | |

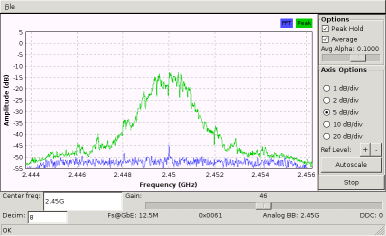

| atusd-20110104-#1 | atusd-20110104-#2 |
|
|
|
Command used in all cases:
atrf-txrx -f 2450 -p 3 "012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789" 1000
